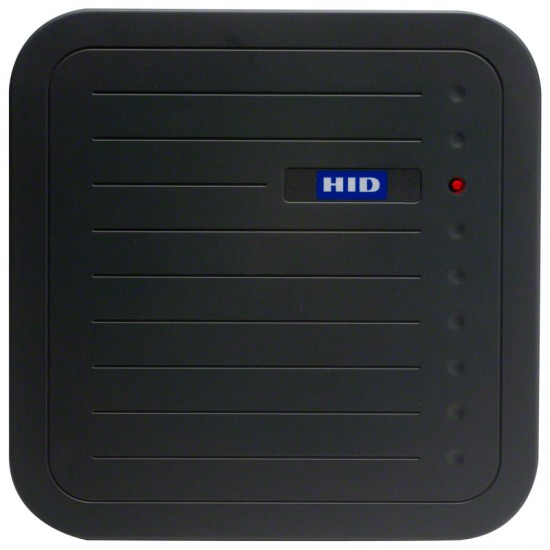

Name: HID Proximity MaxiProx 5375
Brand: HID

HID Proximity MaxiProx 5375

The HID MaxiProx reader is designed for long-range access control applications, making it ideal for vehicle access, parking control and gate entry systems. Its rugged all-in-one housing provides reliable performance and simple installation in demanding environments.

Key Features:

Extended Read Range: Delivers read distances of up to 6 feet when used with HID ProxPass credentials.
Autotune Technology: Maintains optimal read range performance even when mounted near metal surfaces.
Flexible Output Options: Available with Wiegand, Clock-and-Data and selectable serial output formats.
Parking Control Ready: Supports loop detector integration through the parking hold feature for accurate vehicle detection.
Broad Credential Compatibility: Works with HID cards and tags supporting formats up to 85 bits.

For more information on the HID MaxiProx reader, please refer to the product datasheet or contact a member of our team for assistance.

Specification
Cable Distance	Wiegand interface: 500 feet (152 m) Clock-and-data interface: 50 feet (15 m) RS-232: 50-200 feet (15-61 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. RS-422 and RS-485: 4000 feet (1219 m) Recommended cable is ALPHA 1297.
Certifications	Canada/UL 294 Listed: Access Control System Units FCC Certification, United States Canada Certification CE Mark, Fifteen EU Countries under the R&TTE Directive (EN60950 - ITE Electrical Safety, EN 300 330 - SRD, and ETS 300 683 - EMC) IEC60950, ITE CB Scheme Electrical Safety Australia C-Tick Mark New Zealand EMC
Current Requirements	Configurable 12 or 24 VDC Linear power supplies are recommended.
Operating Humidity	0-95% relative humidity non-condensing
Operating Temperature	-22º to 150º F (-30º to 65º C)
Power Supply	Configurable 12 or 24 VDC Linear power supplies are recommended.
Read Range	ProxCard II Card - up to 24" (60.9 cm) ISOProx II Card - up to 20" (50.8 cm) DuoProx II Card - up to 20" (50.8 cm) Smart ISOProx II - up to 20" (50.8 cm) Smart DuoProx II Card - up to 20" (50.8 cm) HID Proximity MIFARE Card - up to 20" (50.8 cm) ProxCardPlus Card - up to 13" (33 cm) ProxKey II Keyfob - up to 17" (43.2 cm) Microprox Tag - up to 15" (38 cm) ProxPass Active Vehicle Tag - up to 6' (1.8 m)
Weight	51 oz. (1.4 kgm)
Dimensions	11.8" x 11.8" x 1.0" (30.0 x 30.0 x 2.54 cm)
