Name: HID Proximity ProxPro II 5455
Brand: HID

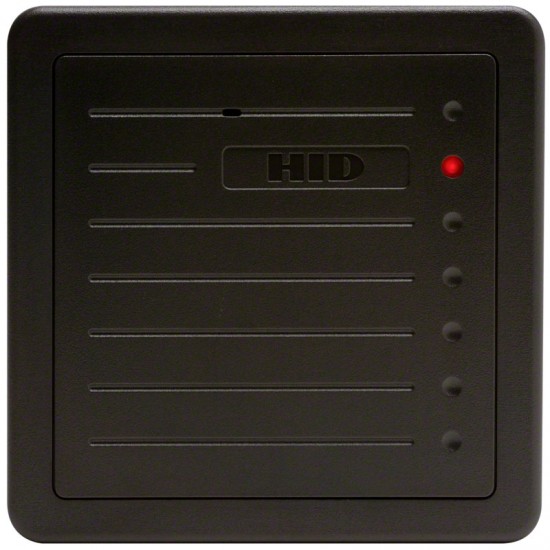

HID Proximity ProxPro II 5455

The HID ProxPro II reader combines reliable medium-range proximity technology with a durable, weatherproof design. Featuring a two-piece construction for simplified installation, it is suitable for both indoor and outdoor access control applications and offers flexible mounting options for a wide range of environments.

Key Features:

Medium-Range Performance: Ideal for applications requiring extended read range and dependable credential authentication.
Easy Installation: Two-piece reader design simplifies mounting and maintenance.
Flexible Interface Options: Available with Wiegand or Clock-and-Data communication protocols.
Indoor & Outdoor Use: Weatherproof, potted construction provides reliable operation in demanding environments.
High Reliability: Delivers consistent read range performance with low power consumption.

For more information on the HID ProxPro II reader, please refer to the product datasheet or contact a member of our team for assistance.

Specification
Cable Distance	Wiegand interface: 500 feet (150 m) Clock-and-Data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
Certifications	Canada/UL 294 Listed FCC Certification, United States Canada Certification CE Mark EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety) Fifteen EU Countries under the R&TTE Directive (EN300 330 - SRD, and ETS 300 683 - EMC) Australia C-Tick (pending) New Zealand (pending) Taiwan (pending)
Current Requirements	Average: 25 mA at 12 VDC Peak: 125 mA at 12 VDC
Operating Humidity	0-95% relative humidity non-condensing
Operating Temperature	-22º to 150º F (-30º to 65º C)
Power Supply	5-16 VDC Linear power supplies are recommended
Read Range	ProxCard II Card - up to 9" (22 cm) ISOProx II Card - up to 8" (20 cm) DuoProx II Card - up to 8" (20 cm) Smart ISOProx Card - up to 8" (20 cm) Smart DuoProx Card - up to 8" (20 cm) HID Proximity and MIFARE® card - up to 8" (20 cm) ProxCard Plus Card - up to 4" (10 cm) ProxKey II Keyfob - up to 4" (10 cm) MicroProx Tag - up to 4" (11 cm)
Weight	13.6 oz. (385 g)
Dimensions	5.00" x 5.00" x 1.00" (12.7 x 12.7 x 2.54 cm)
